Network Configuration

This guide outlines how the network topology is structured within the ProxHome homelab infrastructure, which is powered by Proxmox VE, pfSense, and Tailscale.

Overview

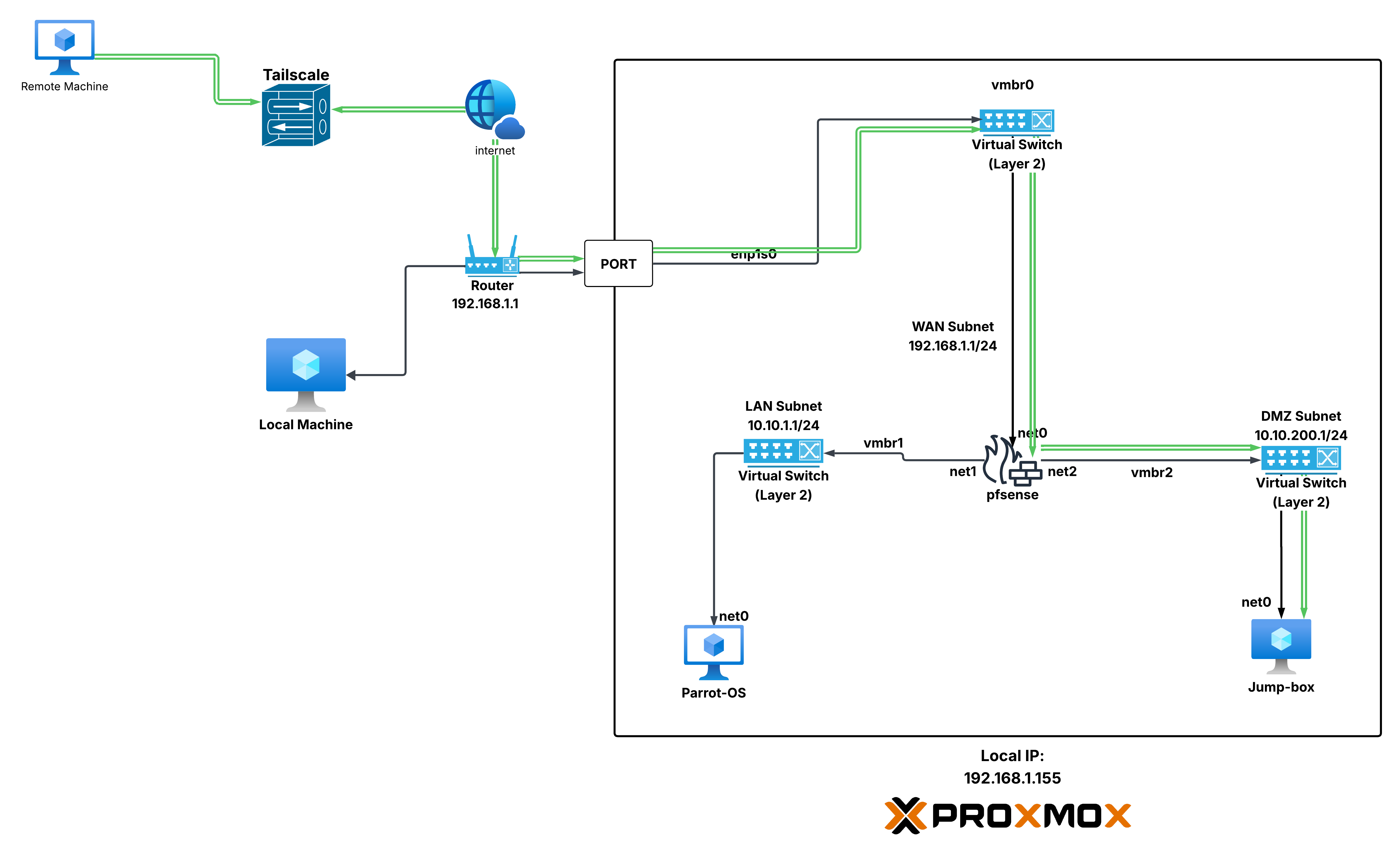

ProxHome uses a virtualized network architecture segmented into three main subnets:

• WAN: 192.168.1.1/24
• LAN: 10.10.1.1/24
• DMZ: 10.10.1.200/24

A pfSense virtual firewall routes and filters traffic between these networks, enabling secure connectivity, isolation, and full-tunnel VPN access.

Topology Components

Proxmox VE Host

• Acts as the virtualization platform.
• Provides virtual bridges (vmbr0, vmbr1, vmbr2) to connect VMs to pfSense and the physical network.

Virtual Bridges (vmbr)

• vmbr0 – WAN bridge connected to the router (192.168.1.0/24)
• vmbr1 – LAN bridge for internal VMs (10.10.1.1/24)
• vmbr2 – DMZ bridge for exposed services (10.10.200.1/24)

---

pfSense Firewall (VM)

• Interfaces:
  • net0 (WAN): Connected to vmbr0
  • net1 (LAN): Connected to vmbr1
  • net2 (DMZ): Connected to vmbr2
• Handles inter-VLAN routing, NAT, firewall rules, and VPN access.

Internal VMs

• Parrot Desktop VM
  • Connected to LAN via vmbr1
• Ubuntu Server
  • Connected to DMZ via vmbr2

External Network

Router

• Default Gateway: 192.168.1.1
• Provides internet access for the Proxmox host and pfSense WAN interface.

External Access

• Devices on the 192.168.1.1/24 subnet can access the pfSense WAN.
• Tailscale provides full-tunnel VPN access, enabling remote access to internal services securely over the internet.

VPN Integration (Tailscale)

• Full-tunnel VPN routes traffic from external devices through pfSense.
• Ensures encrypted remote access to LAN and DMZ resources.

Subnet Breakdown

Network	Subnet	Purpose	Bridge	Devices
WAN	192.168.1.0/24	External access to Internet	vmbr0	pfSense (WAN), Router, Proxmox
LAN	10.10.1.1/24	Internal/Trusted VM network	vmbr1	Parrot VM
DMZ	10.10.200.1/24	Untrusted services	vmbr2	Ubuntu Server
